Home / Santa Fe 2-10-10-2 Mallet

Built by Baldwin Works in 1902.

• Weight: 287,000lbs
• Tractive effort: 62,800lbs
• Number built: 10
• Firebox: Jacobs-Schupert
• Fuel: Oil
• Low pressure cylinders: 38"x32"
• High pressure cylinders: 28" diameter (bushed down from 32")
• Superheater: Buck-Jacobs

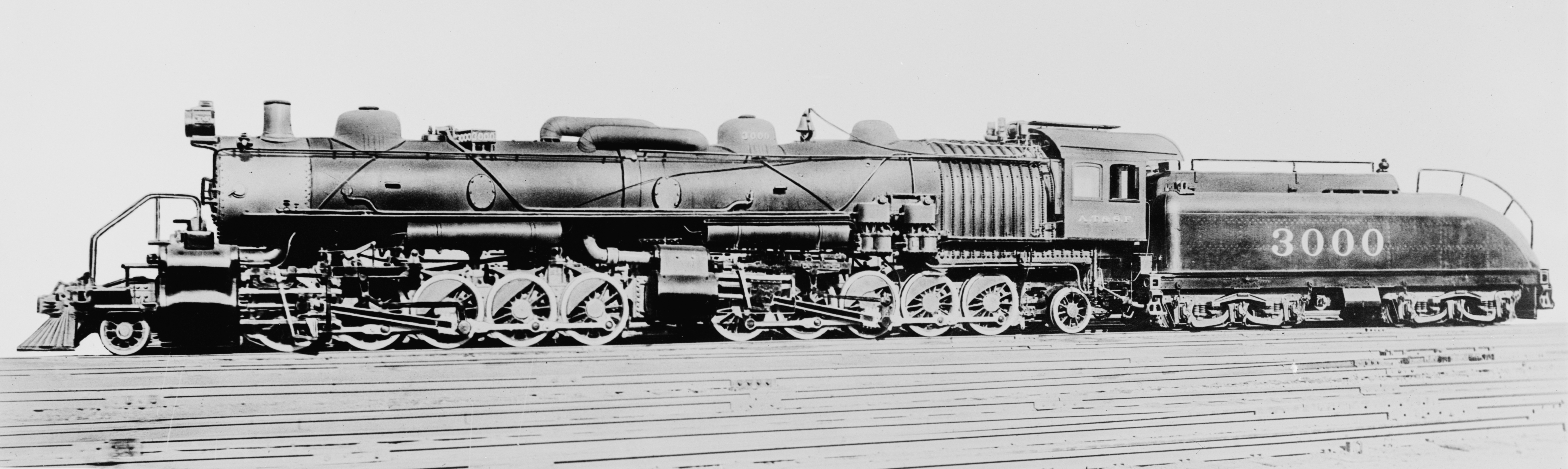

Pictures

Blueprints

Blueprints in collection

	View type	Date	More
	Boiler elevation	08/25/1911	View details
	Cross section	08/25/1911	View details
	Elevation	08/25/1911	View details
